NB-IoT wireless parking lot occupancy sensor
WiiHey’s in-ground parking lot sensor enables you to monitor your parking facilities efficiently with real-time, individual vehicle, individual space data. It is the key to smart, active parking lot management.
The effectiveness of a parking lot management system is greatly relied on the detection of available parking spaces. WiiEMS offers parking lot sensing technology that can be easily tailored to your existing parking system, to monitor parking traffic, and to gather real time and precise information from each individual parking lot space.
The heart of the WiiEMS sensor is a geomagnetic sensor that measures the X, Y, and Z-axis values of the Earth’s magnetic field. As vehicles come into the range of the sensor, changes in the surrounding magnetic field occur and are detected. As auxiliary, an additional luminance sensor is added for double verification by detecting the background brightness changes when vehicles drive above the sensor.
Features
- Geomagnetic sensor & luminance sensor;
- Wireless communication for ease of installation;
- Powered by long-life batteries;
- Robust construction to resist both vandalism and accidental damage;
- Easy integration with existing parking management systems;
Applications
- Parking space occupancy detection;
- Vehicle detection in drive-through;
- Vehicle counting in toll booths;
- Enable advanced parking space management and planning;
- Enable advanced parking guide system
| Parking Lot Sensor | |
| Sensor | geomagnetic sensor |
| and auxiliary luminance sensor (Lux detection) | |
| Resolution | 1.5 Mgauss / 0.028Lux |
| Wireless Connectivity | |
| Network |
NB-IoT：LTE Cat NB2 Band1/B2/B3/B4/B5/B8/B12/B13/B17/B18/B19/B20/B25/B28/B66: Transmitting Power: 23dBm±2dB Receiving Sensitivity: -114dBm(no retransmit) -130dBm(with retransmit) |
| SIM Card Type | Micro SIM Card |
| Power | |
| Power source | 8000mAh@3.6V lithium battery (Solar panel charging module optional) |
| Battery life | 3-5 years |
| Battery Changeable | Yes |
| Mechanical | |
| Case Material | Transparent High Intensity Plastic |
| Dimensions | Ø 90 mm * height 33 mm |
| Weight | 120 g |
| Installation | Recessed |
| Environmental | |
| Operating temp | -20 °C to +65 °C |
| Ingress Degree | IP68 |
| Compressive strength | >20,000 kg |
WiiUNG supports two optional wireless communication methods -- UNB(Ultra Narrow Band) IoT technology and NB (Narrow Band)-IoT technology. Both technologies have transmission ranges of up to several kilometers in urban environments, with very low power consumption, data are then transmitted to cloud sever for further processing and delivery into the end-user’s system.

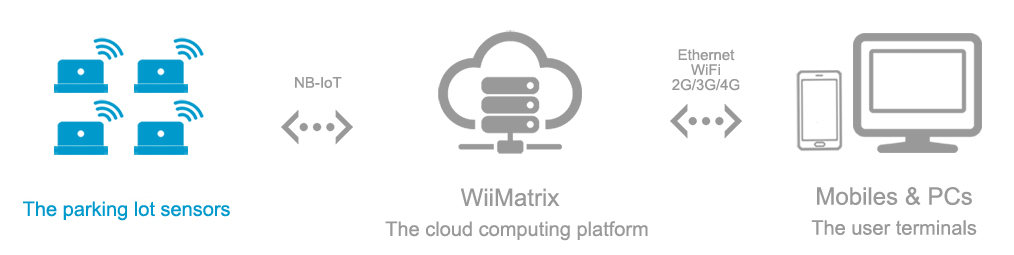

Topology of NB-IoT communication:

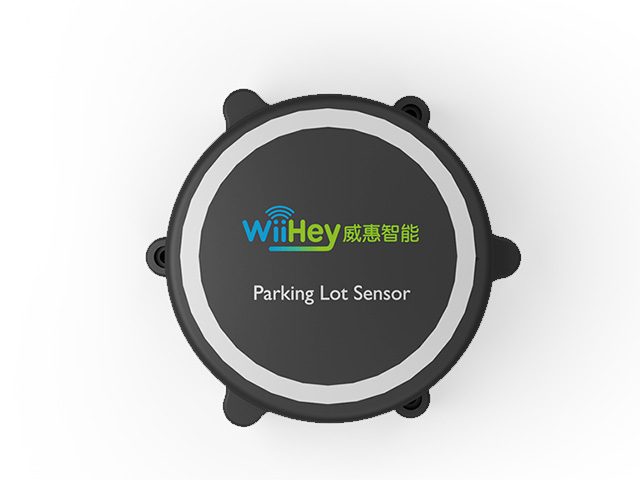

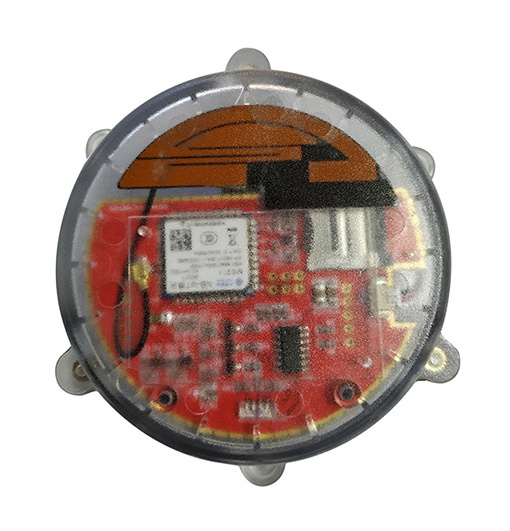

Front view

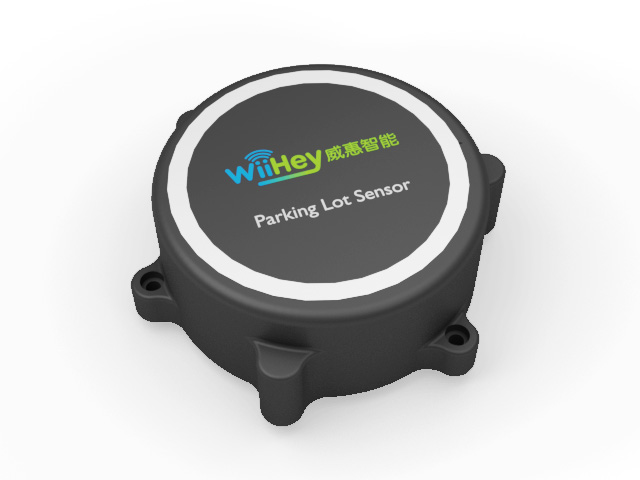

Angled view

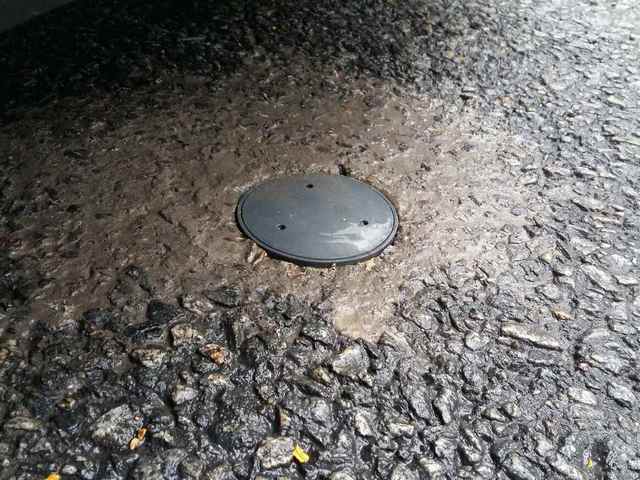

Recess mounting

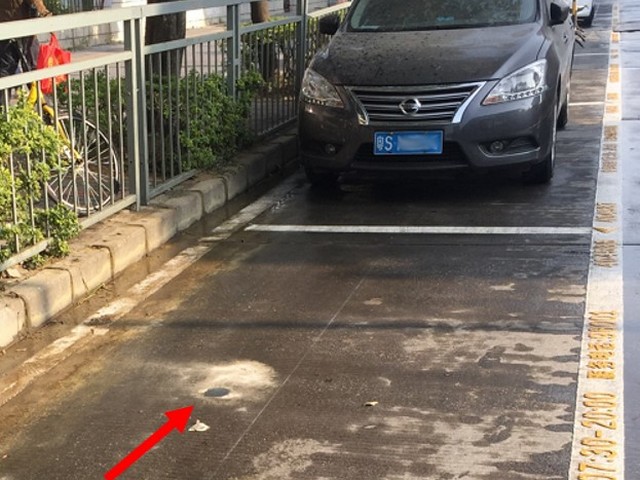

On-street parking

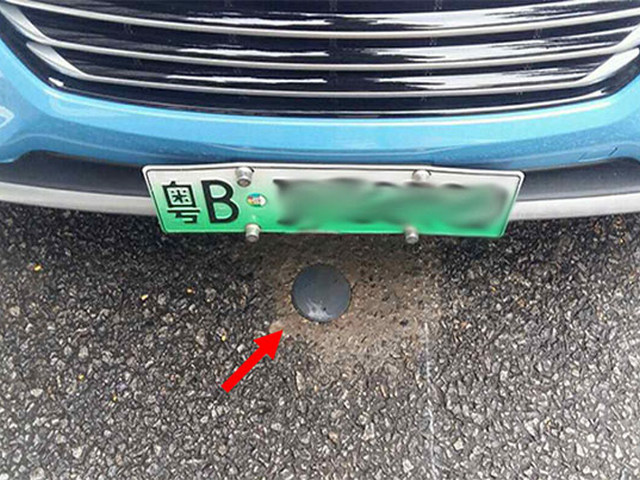

WiiUNG on street

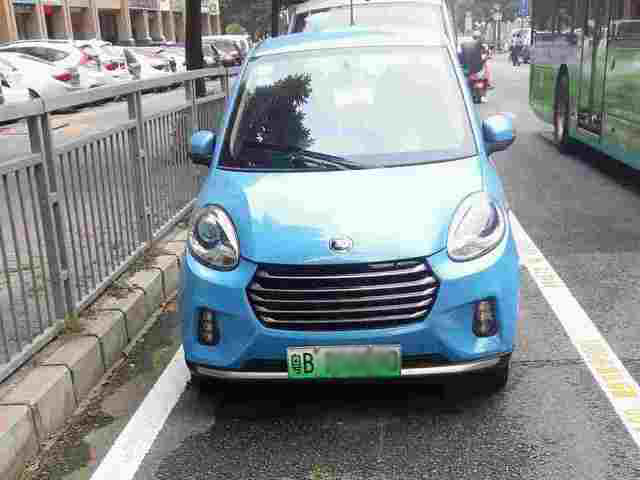

WiiUNG on street

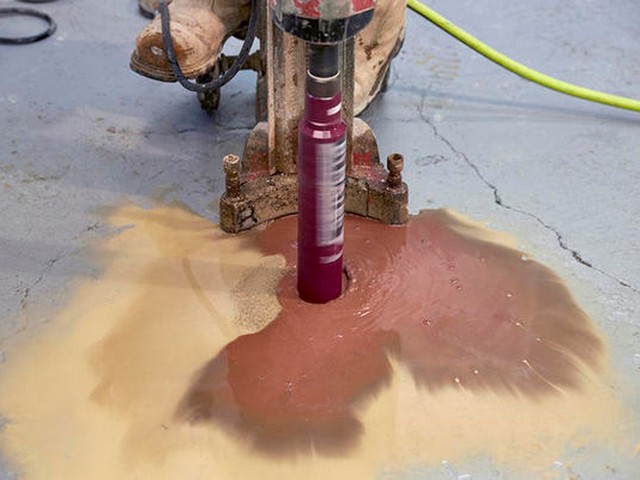

WiiUNG installation
